Generator Fuel Tank Stainless Steel Electronic Reed Switch 0-190ohm Output Float Level Sensor

Generator Fuel Tank Stainless Steel Electronic Reed Switch 0-190ohm Output Float Level Sensor

Length range: 100mm~3000mm
Material: stainless steel 304 or 316
Float: NBR or stainless steel 304
Signal output: resistance, voltage or current
Resolution: 5mm, 7mm, 10mm, 21mm, 35mm

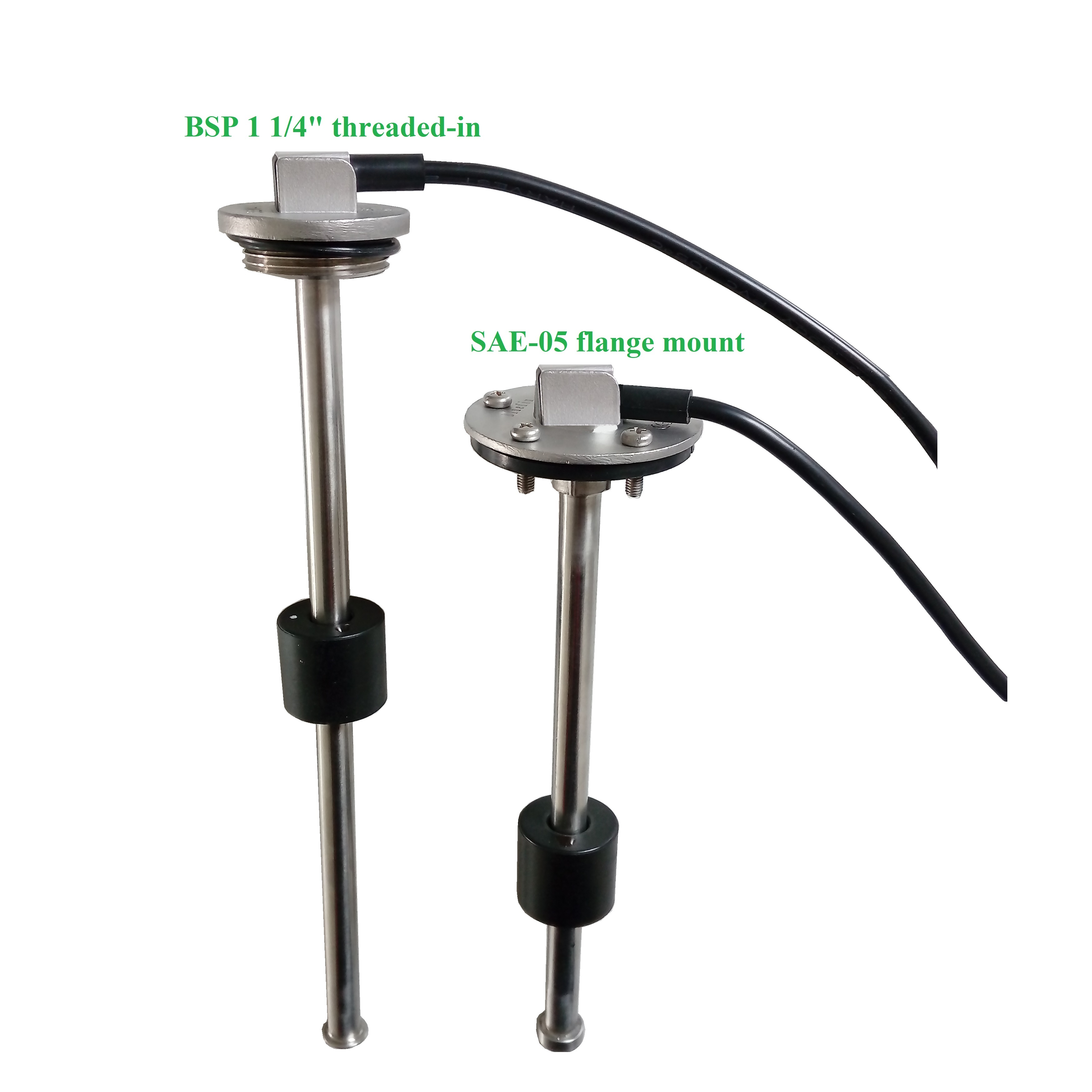

Mounting: BSP 1 1/4", BSP 1 1/2" thread in, SAE-5 hole flange, 6-hole flange, etc.
Application: fuel, water, or other liquid tank


Availability:



Inquire Add to Basket

Product Description

Product:			fuel/water/liquid level sensor with integrated gauge/meter/display
material:			stainless steel 304
mounting:			SAE-5 bolt
length range:			120~2500mm, can be customized
resolution:			4mm, 5mm, 10mm, 21mm
working temperature:			-40~85ºC
standard accessories:			2mm NBR gasket 1pc, M516 screw *5pcs
working voltage:			12VDC, 24VDC
unit of displayed data:			--0-100% in percentage (default) --# of liters --# of gallons
optional output			--voltage: 0-5VDC, 0.5-4..5VDC --current : 4-20mA --CANBUS (J1939) --or customize

SAE-5 hole flange mount from top

BSP 1 1/2" thread in from top

0X9A0028

To satisfy the widest possible range of on-vehicle and industrial fuel or water tanks, the sensor is offered with three distinct electrical interfaces:

• Resistive output – a rugged thick-film potentiometric divider (common 0–190 Ω, 240–33 Ω or user-defined) that plugs straight into legacy dash gauges, hour meters or PLCs.

• Voltage output – 0.5–4.5 V ratiometric or 0–10 V factory-scaled signal, immune to lead resistance and ready for modern ECUs or remote I/O modules.

• Current output – 4–20 mA two-wire loop, intrinsically safe, capable of driving signals over several hundred metres without loss of accuracy.

Equally important, the mechanical form factor is not limited to the traditional “drop-in from the top” design.

We have developed four complementary mounting families so the sensor can follow the tank, instead of forcing the tank to follow the sensor:

Top-mount (standard) – SAE or DIN flange, single 5-hole or 6-hole pattern, 170 mm or custom stem length.
Side-mount – slender bulkhead elbow that enters through a ¾" NPT or M20 port on the tank wall, ideal for low-profile saddle tanks or generator skids where overhead clearance is restricted.
Bottom-upward – a hermetic cartridge that threads into a ½" BSP or NPT sump bung, letting the float rise inside a stilling tube; perfect for plastic tanks where drilling the lid is impossible.
Lock-nut mount – sanitary tri-clamp or lock-nut that grips a 30 mm smooth bore, enabling removal with one hand in tight engine bays or refrigerated van floors.

Each variant uses the same proven 304 or 316 stem and Buna-N float, so performance, temperature range and chemical compatibility remain unchanged regardless of how or where the sensor enters the tank.
