BFS-265 Level Sensor with NTC Temperature Resistor for Evaporate Coolers

Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

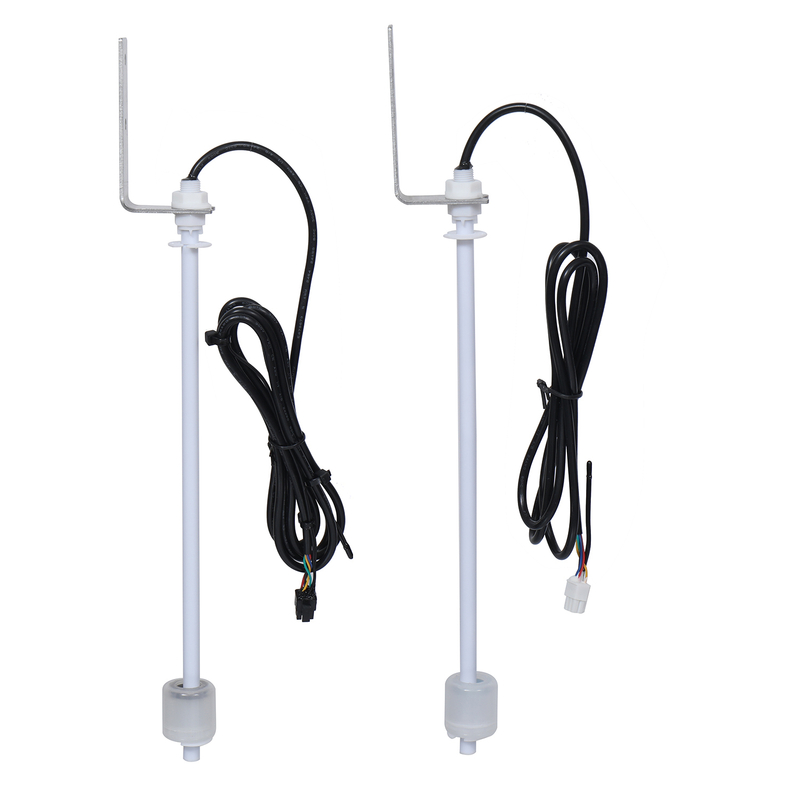

BFS-265 level sensor is an ODM level sensor product used to detect the water level for evaporate coolers. It works easily and reliably to output continuous monitoring signal to controller or level indicator when the float rises and falls with the variation of water level. This design could be used in other applications with most of non-corrosive liquid in tank.


Level sensors come with several key advantages:
Level Control:
These sensors deliver a continuous signal that reflects the water level inside the machine. Users can easily check how much water is left without needing to open the tank. This helps safeguard equipment from damage or malfunctions due to extreme water levels**.
Temperature Display:
The sensor can be equipped with an optional NTC (Negative Temperature Coefficient) resistor in its PCBA. This component outputs a resistance value that corresponds to the water temperature, enabling users to obtain an accurate reading directly from the machine.
Easy Installation:
We supply an "L" - shaped bracket that facilitates quick and easy installation of the sensor on the tank.



model # BFS-265
Length 265mm from the bottom of the head screw
Material PP stem and float
Output 0-3.3Vdc
Resolution 12mm
Float dimension 26*26
Cable length 60" with 6-pin connector, length is customizable
NTC internal at bottom of the inner PCB, to sense liquid temperature
NTC external along with the cable, to sense ambient temperature
Bracket aluminum; it's optional


The BFS-265 Water level sensors find broad application in several key areas, including:
Evaporative Coolers:
By precisely controlling water levels, these sensors ensure optimal performance and safeguard against damage.
Water Tanks:
They provide essential monitoring and control of water levels in storage tanks, preventing both overflow and depletion.
Cooling Towers:
In industrial and HVAC systems, BFS-265 sensors are integral to optimizing cooling efficiency through accurate water level management.
Wastewater Treatment:
These sensors are used to manage water levels in treatment ponds or tanks, ensuring a stable combination of ingredients and proper processing.
