M10*1.5 Lock-nut Type Residential Applications Continuous Level Measuring Sensor with NTC

Availability:
Inquire Add to Basket

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

The BFS-265 level sensor is meticulously crafted for the purpose of accurately monitoring water levels in evaporative cooling systems. It ensures a dependable and constant operation, with its float-based mechanism generating a steady stream of monitoring signals that can be linked to either a control panel or a level gauge. The sensor's flexibility extends beyond water, as it is capable of detecting levels in a wide range of non-corrosive liquids, making it suitable for use in diverse tank settings.

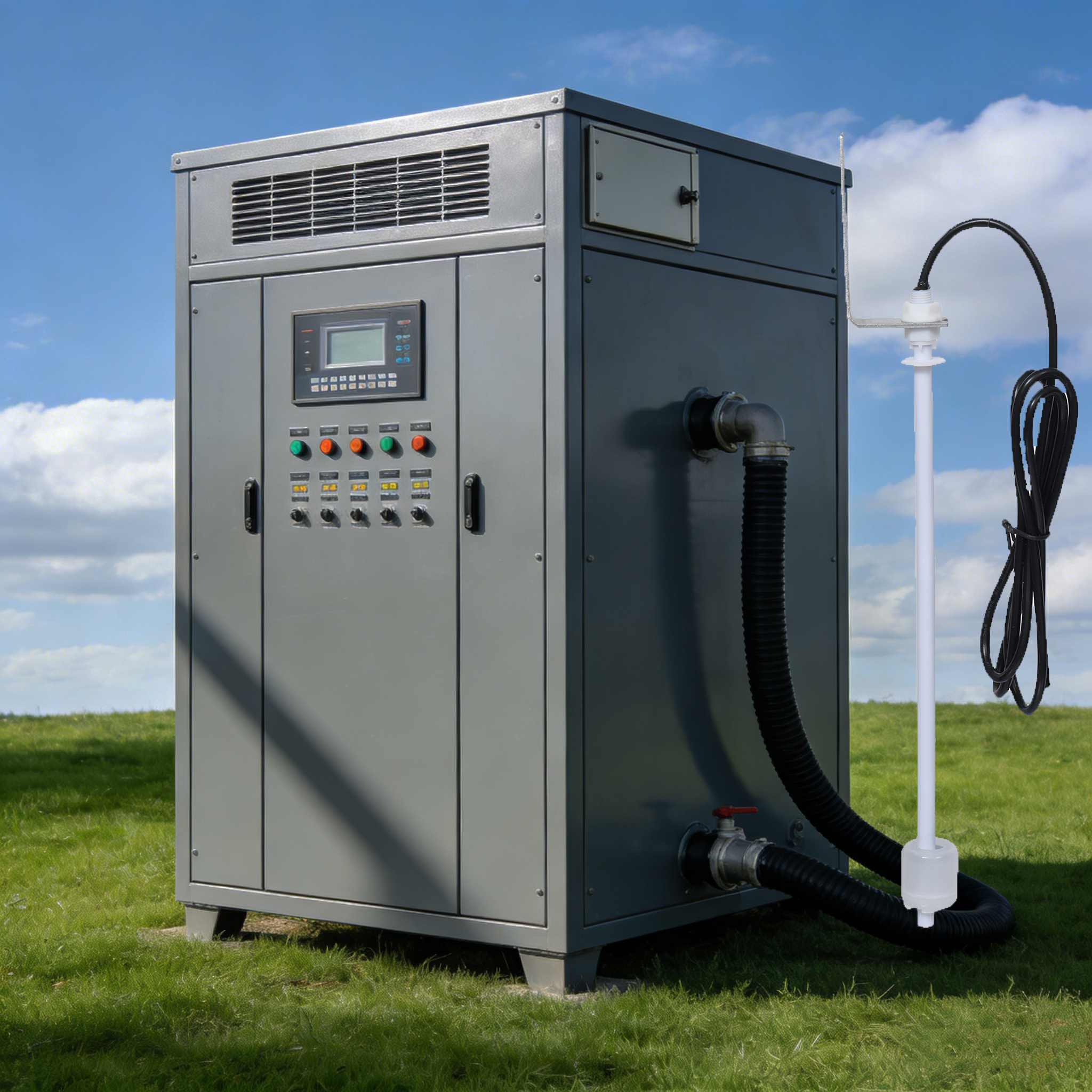

生成图片安装图 (265)


Level sensors offer a range of benefits, including:
Level Control:
The sensors continuously provide a signal that indicates the water level. This allows users to monitor the water remaining in the machine without having to open the tank. It also helps prevent equipment damage or malfunctions caused by very low or very high water levels.
Temperature Display:
The sensor may feature an optional NTC (Negative Temperature Coefficient) resistor within its PCBA. This resistor outputs a resistance value that corresponds to the water temperature, allowing users to read the precise temperature directly from the machine.
Easy Installation:
We provide an "L" - shaped bracket that makes it easy for users to mount the sensor on the tank.



model # BFS-265
Length 265mm from the bottom of the head screw
Material PP stem and float
Output 0-3.3Vdc
Resolution 12mm
Float dimension 26*26
Cable length 60" with 6-pin connector, length is customizable
NTC internal at bottom of the inner PCB, to sense liquid temperature
NTC external along with the cable, to sense ambient temperature
Bracket aluminum; it's optional


The BFS-265 Water level sensors are a versatile solution, widely applied in the following areas:
Evaporative Coolers:
These sensors are designed to control water levels, enhancing overall performance and protecting against damage.
Water Tanks:
They offer reliable monitoring and control of water levels in storage tanks, preventing issues related to overflow or running dry.
Cooling Towers:
In industrial and HVAC systems, BFS-265 sensors ensure optimal cooling efficiency by maintaining proper water levels.
Wastewater Treatment:
These sensors help manage water levels in treatment ponds or tanks, ensuring a stable ingredient combination and proper processing.
