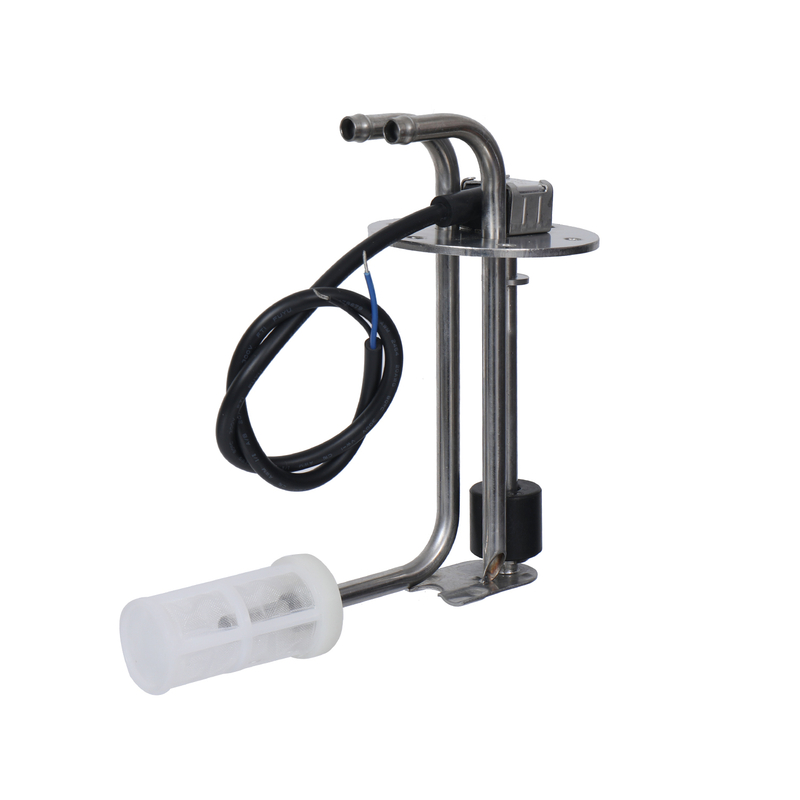

TN-250 Generator Multi-pipe Fuel Level Sensor with Fuel Pick-up And Fuel Return for Power Generator

Float Type Stainlesss Steel 304 SAE-5 Hole Flange Mount Level Sensors for Fuel Level Monitor


Availability:



Inquire Add to Basket

The TN family level sensor offers an analog output signal, making it easy to integrate with existing generator systems for accurate fuel level readings. Its design includes a float mechanism that moves with the fuel level, providing continuous and reliable measurements. Additionally, the sensor features a filter and an optional air vent to maintain system integrity and prevent clogging. This comprehensive solution enhances the operational efficiency and reliability of generator systems, making it an essential component for industrial and commercial applications

TN level sender SAE-5 hole flange mount Level Sensors stainlesss steel 304 level sensor float type level sensor fuel return sensor

Related Products

BSP 1 1/2" Thread in Type Stainless Steel 316 Water Tank Level Sensor for Marine Fuel Tank

S5-400 CANBUS output SAE-5 hole flange mount fuel level sensor, J1939 compliant

S5-200 CANBUS Output SAE-5 Hole Flange Mount High-speed Data Transfer Fuel Level Sensor, J1939 Compliant

Improved-cosmetic S5-200 Stamping Head SAE-5 Bolts Level Sensor

S5-350 4-20mA output 21mm-in-resolution level sensor with built-in PCB on the head unit for telemetry

S5-200 4-20mA Output 21mm-in-resolution Level Sensor with Built-in PCB on The Head Unit for Vehicle Fleet Management

S5-250 stainless steel 304 fuel tank level sensor of resistive output for commercial vehicle and genset

S5-200 Stainless Steel 304 Fuel Tank Level Sensor of Resistive Output for Commercial Vehicle And Genset

SAE-5 Hole Flange Pattern Mechanical Level Sensor And Gauge for Transfer Tank & Holding Tank

NPT 1 1/2" thread-in type mechanical spiral content gauge for small vehicles

S5-350 High-Resolution 4-20mA Current Output Stainless Steel 304 Probe And Float Level Sensor for Bio-diesel Tank

Generator BSP 1 1/2“ Thread in 200mm in Length Empty To Full Mechanical Level Spiral Content Gauge

Steel/aluminum Welding Adaptor/flange for Mechanical Level Gauge Mounting

SAE-5 Bolts Flange Mounting NBR Gasket with Screws for Mechanical Level Gauge Mounting

UL Certificated AWG#18 #20 #22 #24 Cable Harness for Level Sensor

S5-170HL SAE-5-Hole Flange Mount Float Type resistive output Level Sensor for Diesel-engined Automotive

S5-400 21mm Resolution 4-20mA Level Sensor with Integrated PCB for Generator/genset Tank

S5-300 Vehicle Remote Control Level Sensor with 4-20mA Output And 21mm Precision

TN family multi-pipe fuel level sensor with fuel pick-up and fuel return for power generator

Top-rated designer and manufacturer of level-sensor and float-switch

Quick Links

Products

Industries

Contact Us

No. 1, Hengling, Tiansheng lake, Roma, Qingxi Town, Dongguan City, Guangdong Province , China

Leave a Message

Tel: +86 186 7515 2690
Email: sales@bluefin-sensor.com
WhatsApp: +86 186 7515 2690

model #	TN-250
Length	250mm from the bottom to the edge of head unit, 110mm~1500mm is customizable
Material	stainless steel probe and NBR float
Output	0-190ohm or 240-33ohm, customizable
Resolution	21mm in resolution (default)
Float dimension	35*32 NBR
Fuel suction pipe	φ8mm, 10mm, 12mm is optional, filter unit is optional
Fuel return pipe	φ8mm, 10mm, 12mm is optional, length is customizable
Air vent	φ6mm in default
Cable length	default length is 460mm without connector; length is customizable
Connector	It's optional to be integrated on the cable
