Product Description

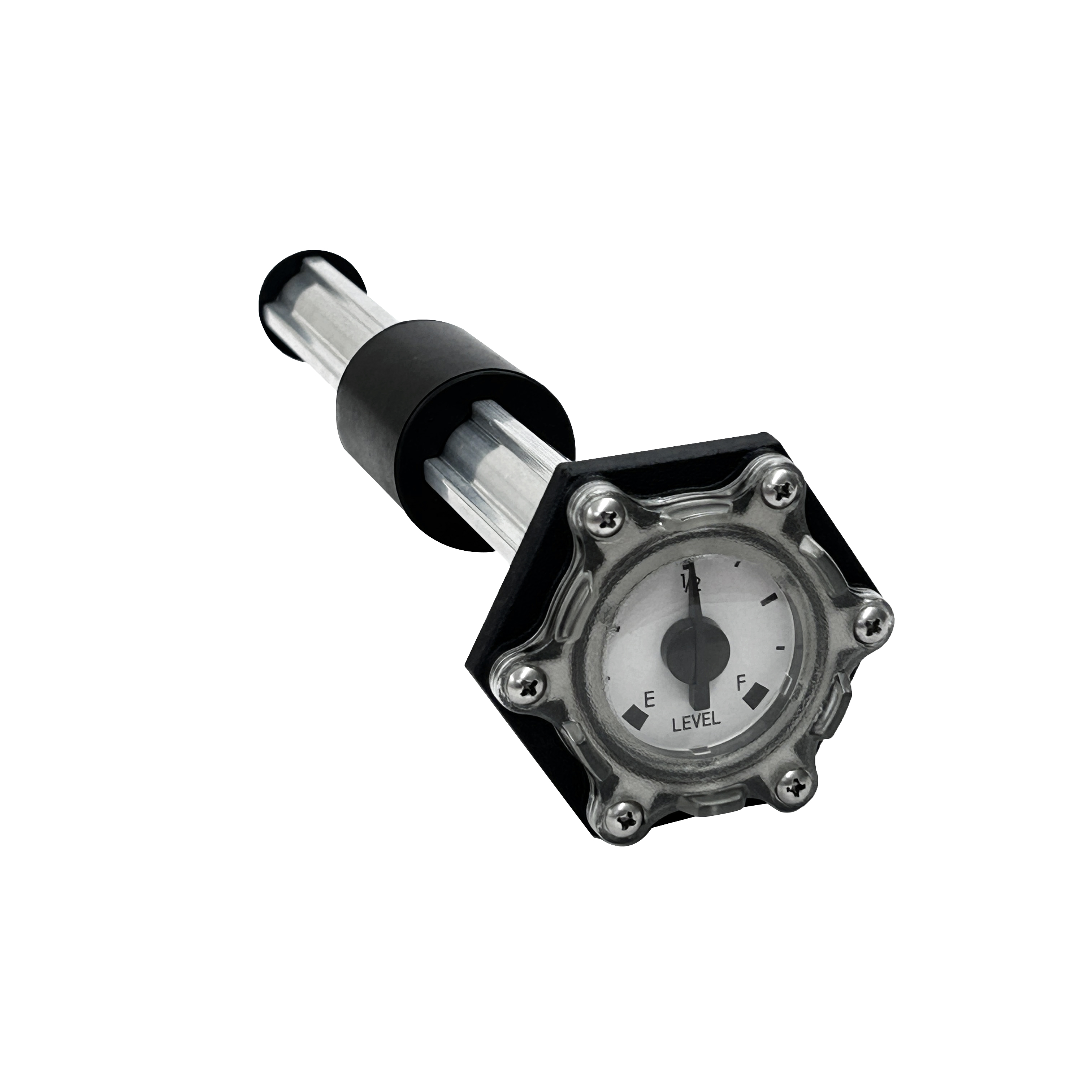

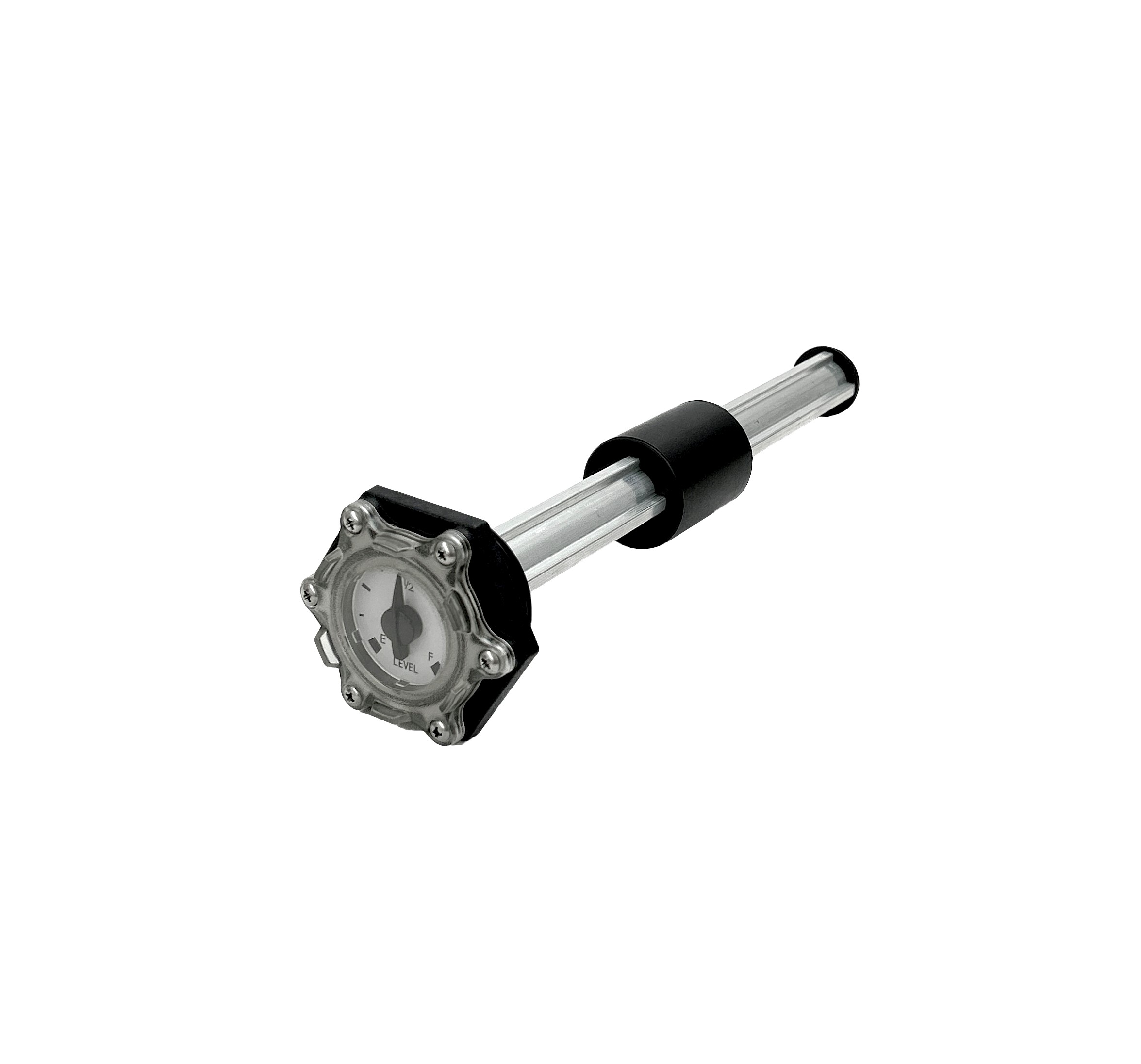

Managing fluid reserves in heavy machinery and storage vessels requires instrumentation that will not fail when environmental conditions deteriorate. The Generator BSP 1 1/2" Thread in 200mm Mechanical Level Spiral Content Gauge is meticulously engineered to deliver precise, continuous fluid monitoring for demanding industrial applications. The gauge senses level variation without electrical power, utilizing a direct physical linkage that ensures uninterrupted readouts even during complete facility power failures. Designed with a tactile, high-visibility dial and a solid metallic core, it provides operators with immediate, reliable data regarding tank capacities. It is easy-to-use, economical and reliable, minimizing maintenance overhead while maximizing operational safety, offering a highly dependable solution for long-term fluid management.
Engineered for Harsh Industrial Environments
At the heart of this mechanical level gauge is a carefully crafted structural housing designed to withstand severe mechanical stress and chemical exposure. The primary extrusion body is constructed from premium-grade aluminum, offering a lightweight yet incredibly rigid framework that resists deformation under pressure. Complementing the metallic body is a heavy-duty nylon gauge head. This specific nylon formulation is chosen for its exceptional resistance to UV degradation, thermal cycling, and corrosive fuel vapors. When handling the unit, the precision machining is immediately evident—the cool touch of the metallic body contrasts with the specialized polymer head, featuring no sharp edges, only a refined, industrial-grade finish. This combination of aluminum and nylon guarantees long-term durability, preventing the premature wear and tear often seen in lesser monitoring devices.
Flexible Specifications for Diverse Tank Depths
Industrial storage systems are rarely one-size-fits-all, and fluid monitoring equipment must adapt accordingly. This mechanical level spiral content gauge is built with adaptability in mind, functioning flawlessly across a wide range of tank dimensions.
- Customizable Probe Lengths: The mechanical level gauge works nicely to wide-range of tank's height from 110mm through 1500mm, ensuring accurate bottom-to-top readings without blind spots.
- Standardized Baseline: The baseline 200mm length configuration serves as an ideal standard for compact generator tanks, providing immediate compatibility for common equipment profiles.
- Continuous Measurement: The internal spiral mechanism provides a smooth, continuous sweep of the indicator needle, translating minute fluid level changes into instantly readable metrics without the stepping or lagging seen in digital counterparts.
- Zero-Power Operation: By relying purely on mechanical buoyancy and spiral translation, the unit eliminates the need for complex wiring harnesses, reducing installation time and potential electrical failure points.
Versatile Mounting Accessories
To facilitate integration into existing infrastructure, we supply options of mounting accessories, no matter the tank's mounting port design is thread-in, 6-hole bolt flange or bayonet twist-and-lock. This ensures a secure, leak-free connection regardless of the vessel's original engineering.
| Mounting Interface | Compatibility & Application Details |
| Thread-in Designs | Directly supports BSP 1 1/2" and M45*2 thread patterns for rapid, twist-in installation on standard ports. |
| Flange Connections | Fully compatible with standard 6-hole bolt flange and SAE-5 configurations, ideal for heavy-duty sealing requirements. |
| Quick-Release Systems | Supports bayonet twist-and-lock mechanisms for applications requiring frequent inspection or rapid component swapping. |
| Welding Adapters | Available for custom fabrications where permanent, integrated mounting is preferred over removable fixtures. |
Uncompromising Safety and Sealing Technology

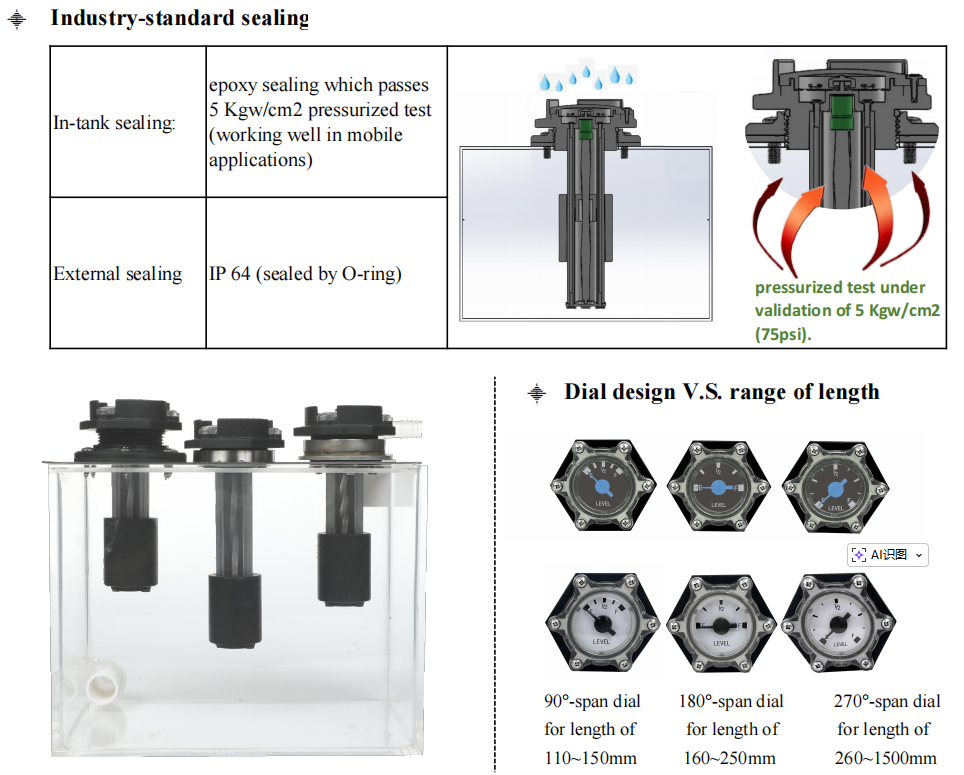

When dealing with fuels, oils, or chemical fluids, containment integrity is paramount. The gauge has a fully isolated dial architecture. This critical design element means we guarantee no liquid penetration to dial, maintaining crystal-clear visibility and preventing hazardous leaks into the surrounding environment. To combat external environmental threats such as dust, driving rain, or industrial washdowns, the unit employs advanced sealing methodologies. Options of O-ring sealing or epoxy-sealing give water-proof against the ambient with IP64-grade or IP67-grade protection. This ensures the internal spiral mechanism remains pristine and responsive, even when deployed in uncovered, outdoor facilities facing extreme weather conditions.
Enhanced Pre-Warning and Broad Application Scenarios
Beyond standard visual indication, this mechanical level gauge can be upgraded with optional high/low liquid level alarm functions. This advanced monitoring feature transforms a passive indicator into an active safety component, allowing operators to integrate the gauge into broader facility management systems for immediate pre-warning of critical fluid depletion or dangerous overflow risks.
The resilient nature of this instrument makes it exceptionally well-suited for a diverse array of industrial applications. It is widely specified for generator sets (GENSET), where reliable fuel monitoring is critical for emergency backup power. In these scenarios, a generator is only as dependable as its fuel supply, making accurate measurement non-negotiable. Furthermore, it has nice performance both in mobile and stationary applications, including standard fuel storage tanks, commercial water tanks, and various equipment that operates in remote locations without reliable electricity. By providing accurate, maintenance-free fluid level sensing, this gauge empowers facility managers to optimize their refueling schedules, prevent costly equipment downtime, and maintain strict operational safety.
