Dual-float high and low level switches provide one of the most reliable ways to manage pump systems, giving operators distinct trip points for activation and shutdown. By reducing false starts and preventing pumps from running dry, these switches are a cost-effective safeguard in both residential and industrial systems. Bluefin Sensor Technologies Limited designs and manufactures precision-engineered float switches that combine durability with practical control logic, making them a trusted choice for sump pumps, cooling towers, water tanks, and more.
What is a dual-float switch and how does it work?
Mechanical principle and electrical contacts
At its core, a dual-float switch relies on buoyancy. Each float is attached to a stem or tether, and as liquid levels change, the float rises or falls, mechanically actuating electrical contacts inside a sealed housing. These contacts can be wired to either close or open a circuit, allowing them to send control signals to pumps, alarms, or controllers. In the dual-float configuration, one float sets the low level trip point while the other defines the high level point. This separation is what reduces unnecessary cycling and protects equipment from damage.
For example, when the liquid drops below the lower float, the switch cuts power to the pump, preventing it from running dry. When the liquid rises to the upper float, the circuit closes again, signaling the pump to start. This on/off hysteresis is the reason dual-float assemblies are favored in sump systems, water basins, and industrial storage tanks.
Dual stem vs two independent floats — tradeoffs

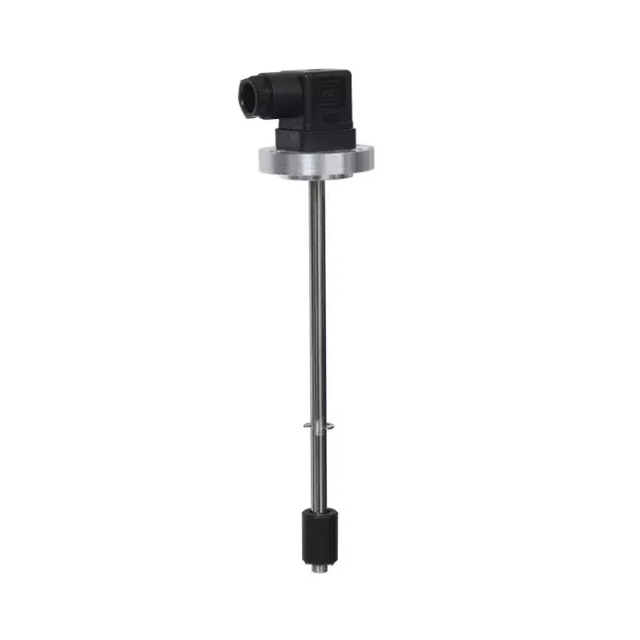

There are two common configurations. The dual-stem model places both floats on a single rigid guide stem, ensuring precise alignment and a fixed distance between trip points. This design offers durability and ease of installation but requires careful sizing for the tank or sump depth.
On the other hand, two independent float switches can be mounted separately, offering flexibility in spacing and replacement. However, this setup requires more wiring and sometimes additional brackets for alignment. Operators often choose the dual-stem type for compact systems and opt for separate floats in large industrial tanks where spacing may vary.
Typical wiring and control logic for pump automation
Simple ON/OFF pump wiring with high/low floats
The most straightforward wiring scheme connects the two floats in series to control a pump motor directly. The low float acts as the cutoff, while the high float initiates the pump. This ensures that the motor only operates within a controlled liquid range, greatly extending pump life and preventing nuisance cycling.
For smaller systems such as household sump pumps or water tanks, this type of wiring is often sufficient. It requires minimal hardware, can be installed by homeowners or maintenance staff, and provides dependable pump automation without complex controls.
Interfacing with control relays, starters and PLCs
In industrial environments, pump control often requires integration with motor starters, contactors, or PLC-based systems. Here, the dual-float high and low level switch can serve as an input to a control relay. The relay then manages higher current loads or communicates with a supervisory system.
This approach offers flexibility: operators can add time delays, redundancy, or interlocks to coordinate pumps with other process equipment. For example, a float switch signal might trigger not only a pump but also an alarm horn or indicator light, ensuring staff are alerted to abnormal tank conditions.
Using dual-float for pump alternation and redundancy
Another common use case is pump alternation. By wiring dual floats through an alternator relay, two pumps can be cycled in sequence, balancing wear and ensuring that a standby pump is always ready. This setup is especially useful in cooling towers, water treatment plants, and condensers where continuous operation is critical. Redundancy ensures that even if one pump fails, the system can still function with minimal downtime.
Common applications: cooling towers, condensers, water towers, household tanks
Why cooling towers use dual-float for basin level control
Cooling towers rely on consistent water basin levels to operate efficiently. A dual-float switch ensures that make-up water is added when the basin level drops, while also preventing overflow if the inlet valve sticks open. This dual protection maintains proper thermal performance and avoids costly water waste.
In condensers and water towers, similar logic applies. The switch prevents dry operation that could damage pumps or heat exchangers, while also safeguarding against flooding conditions that might spill into surrounding equipment areas.
Sizing, placement and vibration considerations
Placement is critical for reliable operation. Floats must be positioned away from inlet turbulence, strong vibration, or obstructions that could hinder their movement. In basins or tanks where flow is high, using stilling tubes or protective cages helps stabilize the float and prevent false triggers.
Sizing also matters: floats should be matched to the tank depth and expected level range. Oversized floats in small tanks may chatter or jam, while undersized floats in large basins may not provide sufficient actuation force. Bluefin Sensor Technologies offers multiple stem lengths, float diameters, and mounting configurations to ensure accurate fit across different industries.
Installation tips & anti-nuisance measures
Debris guards, mounting height, anti-chatter configurations
In wastewater sumps and outdoor tanks, debris can easily interfere with float movement. Protective guards or slotted covers reduce this risk while allowing liquid to flow freely. Setting the correct mounting height is equally important—if the floats are too close together, cycling will be frequent, while too far apart may cause undesirable liquid swings.
Anti-chatter techniques, such as incorporating time delays or using weighted floats, prevent rapid switching caused by turbulence or splashing. These measures extend switch life and reduce maintenance calls.
Routine checks and when to replace the float assembly
Like any mechanical device, dual floats require periodic checks. Maintenance staff should verify free movement of the floats, inspect wiring for corrosion, and test the electrical continuity during routine inspections. If floats become waterlogged, cracked, or stuck, replacement is recommended.
High-quality assemblies, like those from Bluefin Sensor Technologies, are built with sealed housings and corrosion-resistant materials, significantly extending service life. Nevertheless, routine inspections ensure that the system remains reliable over the long term.
Troubleshooting & FAQs
Float stuck, false triggers, wiring faults, and simple tests
Common issues with dual-float high and low level switches include floats getting stuck due to debris, false triggers from turbulence, and wiring faults caused by moisture ingress.
A quick troubleshooting method is the manual lift test: carefully raise and lower each float by hand to confirm that it actuates the circuit as expected. Using a multimeter, operators can also check continuity across the switch terminals to verify electrical function. If the circuit does not open or close correctly, replacement is typically the fastest solution.
For wiring faults, ensuring proper sealing of cable entries and junction boxes is critical. Moisture intrusion remains the number one cause of premature float switch failure in harsh environments.
Conclusion
Dual-float high and low level switches remain one of the most dependable tools for pump automation. They deliver clear trip points, prevent dry-running, and reduce wear on motors, making them ideal for both residential and industrial systems. With precision manufacturing and turnkey solutions from Bluefin Sensor Technologies Limited, customers gain a low-cost yet highly reliable method to control pumps, alarms, and water levels. To learn more or request a wiring diagram or sample dual-float kit, contact us today.
