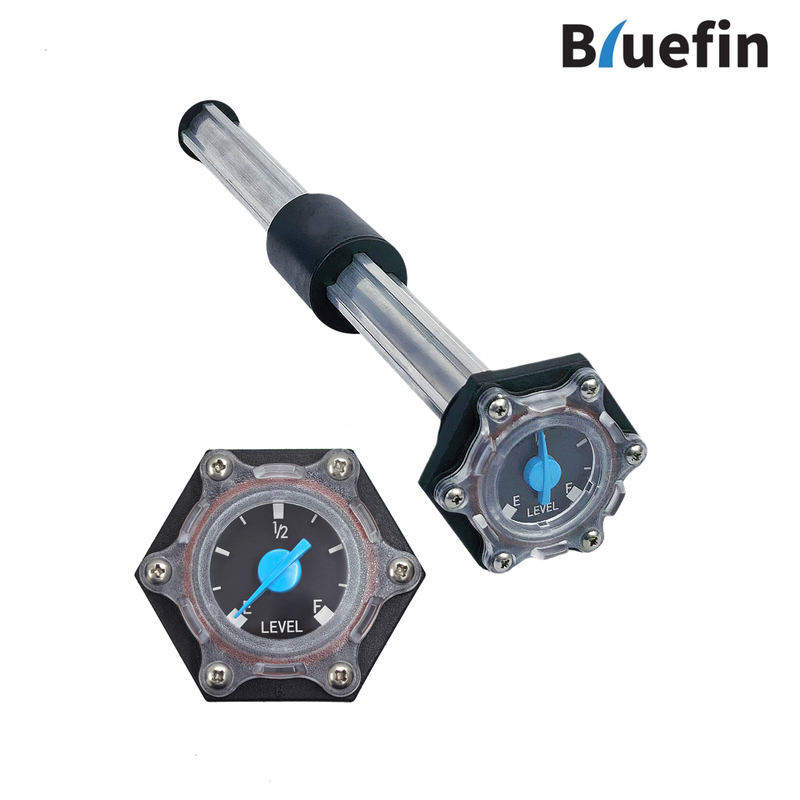

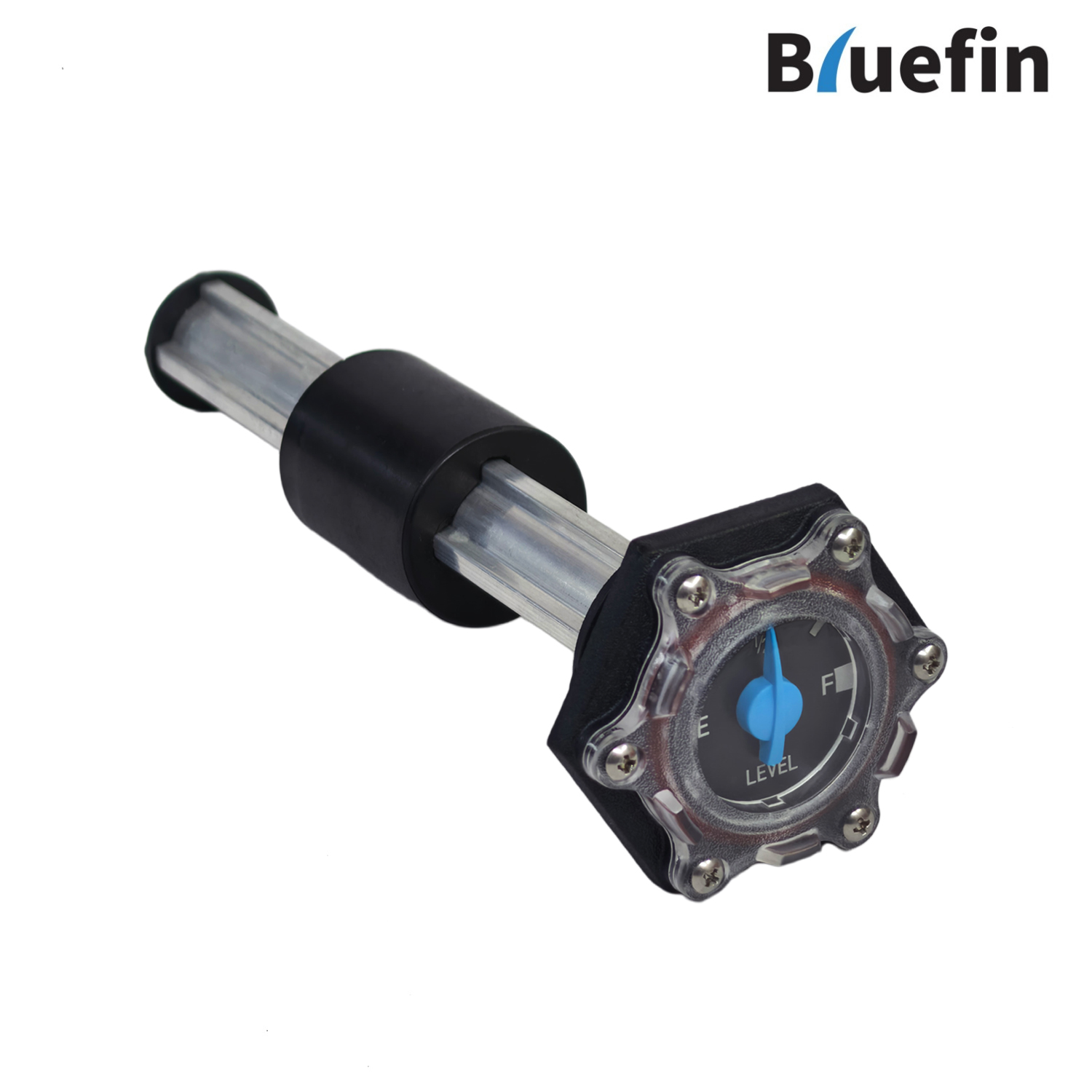

The mechanical level gauge is a practical solution for monitoring fuel levels in generator tanks, combining level measurement and display in one unit without the need for a power supply. This feature makes it ideal for situations where electricity is unavailable or unreliable, ensuring consistent monitoring capabilities. Made from durable materials like nylon and aluminum, these gauges are resistant to corrosion and designed for longevity in demanding environments. They offer a direct visual readout, allowing operators to quickly assess the fuel level, which is crucial for preventing generator downtime due to fuel exhaustion. With a range of sizes available to fit various tank configurations, these gauges provide a reliable and cost-effective method for fuel level monitoring in generator tanks
The mechanical level gauge is a practical solution for monitoring fuel levels in generator tanks, combining level measurement and display in one unit without the need for a power supply. This feature makes it ideal for situations where electricity is unavailable or unreliable, ensuring consistent monitoring capabilities. Made from durable materials like nylon and aluminum, these gauges are resistant to corrosion and designed for longevity in demanding environments. They offer a direct visual readout, allowing operators to quickly assess the fuel level, which is crucial for preventing generator downtime due to fuel exhaustion. With a range of sizes available to fit various tank configurations, these gauges provide a reliable and cost-effective method for fuel level monitoring in generator tanks
model # | MMGD-150 |
Length | 150mm from the bottom of the nylon flange |
Material | PA66 nyon fange and NBR float |
Output | Empty to full level |
Float dimension | 39*50mmm |
Thread | M45*2 |
Optional Flange | 6-hole flange pack and welding adaptor is availble |
Remarks | Length is customizable fom 110-1500mm |
model # | MMGD-150 |
Length | 150mm from the bottom of the nylon flange |
Material | PA66 nyon fange and NBR float |
Output | Empty to full level |
Float dimension | 39*50mmm |
Thread | M45*2 |
Optional Flange | 6-hole flange pack and welding adaptor is availble |
Remarks | Length is customizable fom 110-1500mm |
Mechanical gauges are traditional devices that use physical mechanisms to indicate the level of a fluid. They often feature a dial and a pointer that move in response to changes in fluid levels.
The float rises and falls with the water/fuel/diesel/agsoline level, moving the dial pointer accordingly.
Advantages of Mechanical Gauges
Simplicity:
Easy to read and understand, with no need for complex electronics.
It works nicely in the environment of no power supply.
Mechanical gauges are traditional devices that use physical mechanisms to indicate the level of a fluid. They often feature a dial and a pointer that move in response to changes in fluid levels.
The float rises and falls with the water/fuel/diesel/agsoline level, moving the dial pointer accordingly.
Advantages of Mechanical Gauges
Simplicity:
Easy to read and understand, with no need for complex electronics.
It works nicely in the environment of no power supply.
