Side-mount high level switches are an excellent solution for applications where shallow tanks, limited top access, or retrofit installations make conventional top-mount devices impractical. Bluefin Sensor Technologies Limited, a top-rated designer and manufacturer of level sensors and float switches, provides a range of side-mount level switches designed for reliable performance in industrial and HVAC systems. Understanding how these switches work, when to select them, and best practices for installation can ensure accurate high-level detection while avoiding nuisance trips and system interruptions. In addition, these devices are engineered to offer long-term reliability even in harsh environments where fluid properties, temperature, or tank geometry may complicate standard top-mount installation.
What Is a Side-Mount High Level Switch?
Side-mount high level switches are float-type devices installed through the side of a tank rather than the top. Unlike top-mount level switches, which are inserted vertically from above the tank, side-mount switches are installed horizontally or at a slight angle to accommodate space constraints. This design is particularly useful for retrofits, tanks with restricted vertical space, or shallow vessels where a top-mount device might interfere with other equipment or piping.
Construction and Sensing Differences
The primary difference between side-mount and top-mount switches lies in the sensing mechanism and orientation. Side-mount switches use a float attached to a stem or cage, which pivots or slides as the liquid rises. This movement triggers an internal mechanical or magnetic switch to signal a high-level alarm. Because the float operates horizontally or at an angle, turbulence and vibration can affect performance if not properly accounted for during installation. In contrast, top-mount switches rely on gravity-assisted vertical float motion, which can be more tolerant of liquid agitation. Side-mount designs often include reinforced stems, sealed magnetic couplings, or adjustable floats to enhance sensitivity and reduce the effects of fluid density changes, making them suitable for a wider range of industrial liquids, from water and chemicals to light fuels.

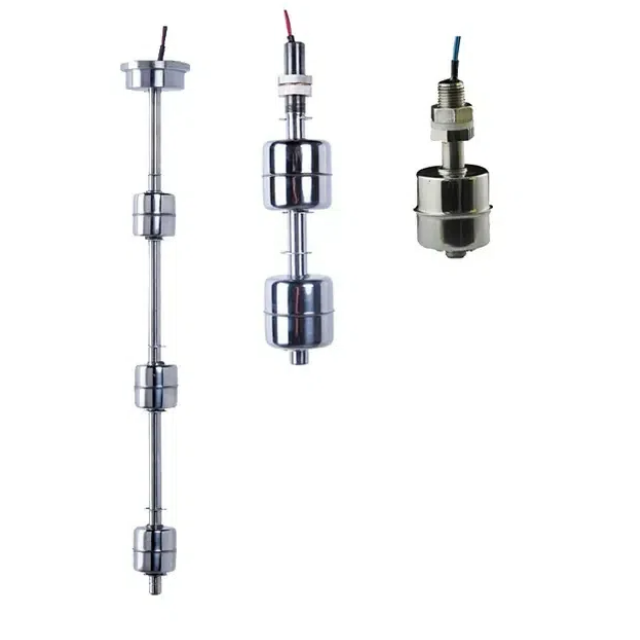

Typical Form Factors and Mounting Options
Side-mount level switches come in various form factors, including single- or dual-stem designs and different float cage configurations to suit tank diameter and fluid properties. Mounting bosses can vary in size and thread type, and many suppliers, including Bluefin Sensor Technologies Limited, provide multiple options to match existing tank openings. Selecting the correct form factor ensures proper float travel and accurate high-level detection, especially in shallow tanks or retrofit applications where the installation space is constrained. Additionally, some designs offer modular cages or removable floats to simplify cleaning and maintenance without needing to drain the tank completely.
When to Choose Side-Mount Over Top-Mount
Deciding between side-mount and top-mount high level switches depends on tank geometry, access limitations, and retrofit requirements.
Ideal Scenarios for Side-Mount Installation
Side-mount switches are particularly suited for shallow tanks where vertical clearance is limited, or when retrofitting into existing tanks with a single pre-drilled boss. They are also valuable in systems where top access is obstructed by piping, ladders, or other equipment. Installing a side-mount device can reduce installation complexity and cost while maintaining reliable high-level detection. Engineers often prefer side-mount solutions in retrofit projects because the installation can usually be completed without major modifications to the existing tank or piping layout.
Common Applications
Typical applications for side-mount high level switches include small day tanks, HVAC basins, condensate return systems, and reservoirs. In industrial water systems, side-mount switches provide reliable high-level alarm signals without interfering with piping or maintenance access. In fuel storage or pumping systems, side-mount installation can simplify retrofits while maintaining precise alarm setpoints. They are also used in chemical dosing tanks, where space is limited and liquid agitation could otherwise trigger false alarms on top-mounted devices. By providing an accurate high-level signal, side-mount switches help prevent overflows, pump damage, and unnecessary system shutdowns.
Installation Best Practices for Accurate Detection
Proper installation of side-mount high level switches is critical for preventing false alarms and ensuring long-term reliability.
Mounting Height and Orientation
The mounting height should be carefully calculated based on the desired alarm setpoint and liquid characteristics. Installing the float cage slightly above or below the intended high-level point can accommodate liquid turbulence and minor level fluctuations. Orientation is also key; the float must move freely without hitting the tank wall or internal components, and the stem should be aligned with the expected liquid surface angle. Some designs allow minor angle adjustments during installation to fine-tune switch sensitivity and reduce the risk of premature or delayed alarms.
Anti-Vibration and Turbulence Considerations
Side-mounted switches in pumping sumps, condensate systems, or tanks with frequent fluid agitation should be equipped with anti-vibration mounts or shields. This reduces the risk of nuisance trips caused by splashing or vibration-induced float motion. Using a float cage with a guide stem or stabilizing vane can further improve stability and signal accuracy in turbulent conditions. Additionally, placing baffles or flow diffusers inside the tank can help stabilize the liquid near the float, ensuring a consistent response even in systems with variable inflow or pumping rates.
Common Failure Modes and Preventive Maintenance
Even the most reliable side-mount switches can encounter issues if maintenance is neglected.
Typical Problems
Blockage from debris, float binding, and material degradation are common failure modes. Debris can prevent the float from moving freely, while corrosion or chemical attack can impair the switch mechanism. Rubber or plastic floats may shrink or become brittle over time, particularly in hot or chemically aggressive liquids. Environmental factors such as prolonged UV exposure or high humidity can also accelerate degradation of external components.
Inspection and Preventive Measures
Regular inspection of the float, stem, and cage is essential. Cleaning the device, checking for obstructions, and verifying the float density range against the liquid being measured can prevent failures. Bluefin Sensor Technologies Limited recommends periodic calibration and replacement of worn components to maintain reliable operation. Implementing a preventive maintenance schedule can significantly extend the service life of side-mount switches, especially in high-use industrial or HVAC systems.
Specification Checklist for Suppliers
When selecting a side-mount high level switch, there are key specifications to verify with your supplier:
Boss size and thread type compatibility with your tank
Approvals for specific industrial or hazardous environments
Float density range suitable for the liquid
Availability of spare cages or replacement floats
Ensuring these specifications match your system requirements minimizes installation issues and enhances switch reliability over the life of the tank system. Additional considerations include checking the electrical rating, switch output type (mechanical, reed, or solid-state), and temperature tolerance to ensure compatibility with the intended application.
Conclusion
Side-mount high level switches offer an effective solution for shallow tanks, retrofit installations, and spaces with limited top access. Bluefin Sensor Technologies Limited provides high-quality switches that deliver precise high-level detection while minimizing nuisance trips. By carefully selecting, installing, and maintaining your side-mount switch, you can ensure accurate monitoring of water, fuel, or industrial fluids in even the most challenging tank configurations. Contact us today to view compatible mounting kits or request installation support for your side-mount high level switch, and ensure your systems operate safely and efficiently.
