Product Description
Comprehensive Liquid Level Control Solutions
Delivering uncompromising reliability in fluid management, our comprehensive range of liquid level float switches is engineered to maintain optimal fluid volumes across diverse industrial environments. We provide an extensive selection of standard, vertical, and horizontal configurations tailored to specific operational demands. The foundation of these devices lies in their superior material construction. Operators can choose from premium SUS304 and SUS316 stainless steel, which offers a reassuring structural heft and a smoothly polished finish that actively resists residue buildup and scaling. For highly aggressive chemical media, we supply specialized corrosion-resistant plastics, including PTFE, PVDF, polypropylene, and PVC. These instruments serve as the first line of defense against catastrophic tank overflows and damaging dry-runs. By automating the dispensing of liquids—whether filling or emptying a vessel—they ensure continuous, safe operation. Furthermore, the heavy-duty enclosures are fortified with IP65/IP68 or NEMA-rated waterproof and dustproof protections, safeguarding the internal electronics from harsh external elements. Fully compliant with CE and RoHS international standards, these switches guarantee industrial-grade safety, allowing facility managers to customize probe lengths and control the filling cycles of all vessel sizes, from compact containers to massive storage tanks.
Operational Principles and Automation Mechanics
Understanding the internal mechanics of our level indicators reveals their exceptional precision. The core operation relies on a highly responsive buoyancy mechanism. As the liquid level shifts, the float travels along the stem. Most of our vertical liquid level indicators feature a reversible design; operators can easily change the default state from normally open to normally closed by simply removing the bottom retainer and flipping the float. When fluid lifts the float, it makes contact with the internal elastic ring and magnetic reed switch with a faint, distinct mechanical click, instantly turning the switch to the ON position.
To ensure flawless integration into complex automated systems, these switches incorporate several advanced electrical features:
Versatile Contact Forms: Available in both SPDT and SPST configurations to match specific circuit requirements.
Broad Voltage Compatibility: Supports a wide range of AC/DC voltage inputs, ensuring stable communication with existing industrial PLCs and alarms.
Pump Up/Down Logic: Automatically triggers pumps to start emptying a full tank or filling a depleted one, maintaining an exact fluid equilibrium.
Instantaneous Alarm Triggering: Immediately activates warning sirens or lights when optimal levels are not met, preventing system failure.
This straightforward yet highly effective automation ensures that tank levels never drop too low, offering endless application possibilities across various sectors.
Vertical Mounting Configurations and Extreme Durability
Vertical float level sensors provide unparalleled adaptability, designed to be securely mounted at either the top or the bottom of the storage tank. This strategic placement creates a highly efficient two-point contact system, orchestrating the emptying and filling cycles with maximum precision and minimal operational downtime. To accommodate the most demanding processing environments, these vertical units are engineered to withstand extreme physical conditions.
| Maximum Operating Temperature | Up to 200℃ |
| Maximum Working Pressure | 15 Bar |
| Specific Gravity (SG) Compatibility | 0.65 and above |
| Supported Media Types | Purified water, oils, organic solvents, and specific powders |
Beyond their impressive thermal and pressure tolerances, these vertical switches feature various international mounting threads, including G1, NPT, and reinforced flange connections. For tanks experiencing heavy fluid turbulence, we offer custom anti-fluctuation tubes that stabilize the float, ensuring accurate readings. Whether crafted from heavy-duty stainless steel or resilient plastics, these sensors deliver a tailored solution that aligns perfectly with your specific budget and technical needs.
Horizontal Side-Mounted Solutions for Precise Monitoring

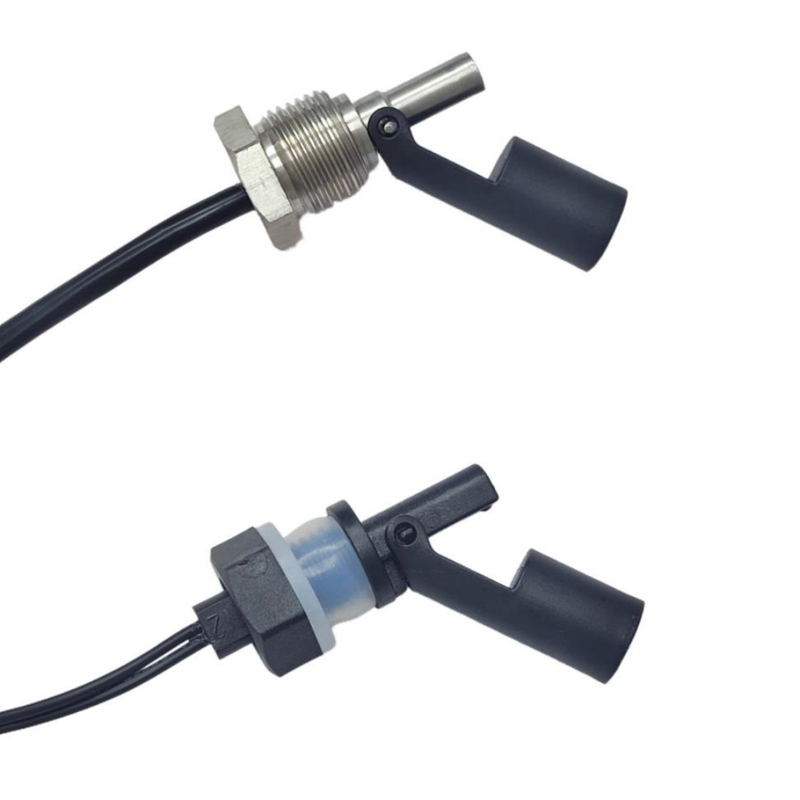

Horizontal float type level sensors are specifically engineered to mount directly through the side wall of the tank. This lateral installation is particularly advantageous when top or bottom access is restricted, giving operators the exact ability to set definitive low alarm thresholds regardless of the size, depth, or complex geometry of the vessel.
Pinpoint Accuracy: By placing the switch at the exact critical elevation, facilities can monitor precise fluid levels, ensuring that pumps are deactivated before a tank runs completely dry, thereby protecting expensive pumping equipment from cavitation damage.
Adaptable Interfaces: Equipped with a comprehensive selection of mounting threads and flange standards, these side-mounted solutions integrate rapidly into existing infrastructure. The tactile quality of the machined threads ensures a tight, leak-proof seal upon installation, preventing hazardous drips or spills.
Long-Term Stability: The horizontal configuration leverages the natural buoyancy of the fluid against a fixed pivot point, creating a highly reliable mechanism that requires virtually no maintenance. With a wide array of materials available, from standard stainless steel to specialized polymers, we can design the perfect, long-lasting solution to solve your most complex liquid monitoring challenges.
