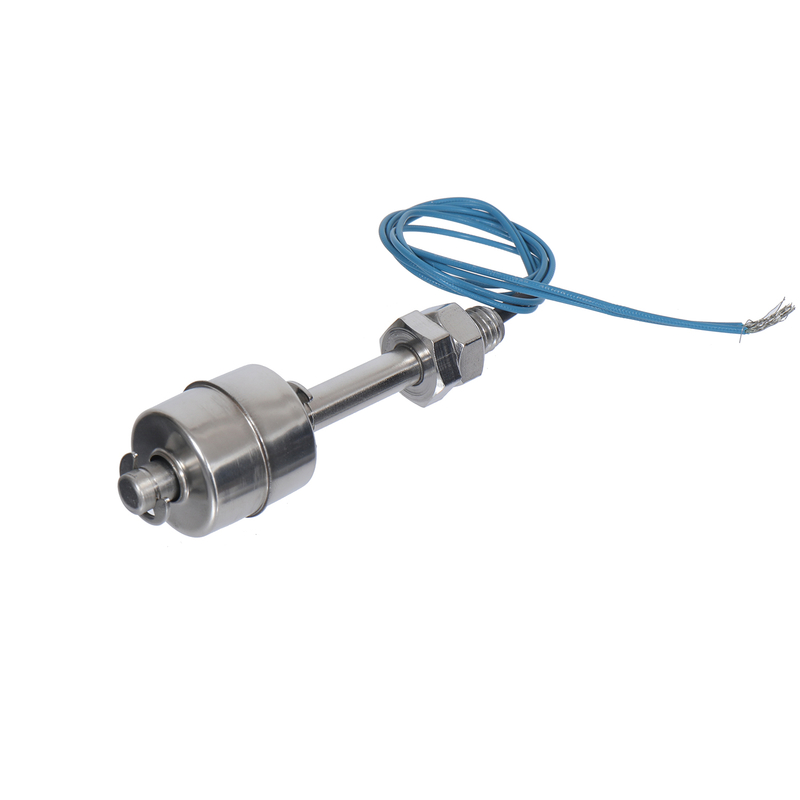

Top Mounted Single-point Level Control Switch

A float switch is a type of level sensor, a device used to detect the level of liquid within a tank.
The switch may be used to control a pump, as an indicator, an alarm, or to control other devices.

Material: Stainless Steel, PP, PVDF
Switch contact mode: normal open or normal close
Application: Liquid, Water, Edible water, Fuel, Oil, Diesel, Propane, Gasoline, Gas Tank
Length: customizable based on the tank's height
Mounting position: Top-Mount, Side-Mount, Bottom-up mount
Assembly method: by flange, by thread, by lock nut
Package: Neutral Safe Packing
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Top-Mount Float Level Switch
Install it from the top of your tank and forget about level headaches.

A single, hermetically-sealed reed switch rides on a stainless-steel float;

as liquid rises or falls, the magnet actuates the switch with ±2 mm repeatability.

No external power, no calibration—just two wires that give you a output signal.

Rated –20 °C to +120 °C and 0.8–1.0 g/cm³ media density, it shrugs off foam, vapor and agitation.

Ideal for sumps, day tanks and OEM skid builders who need “set-it-and-leave-it” reliability.
